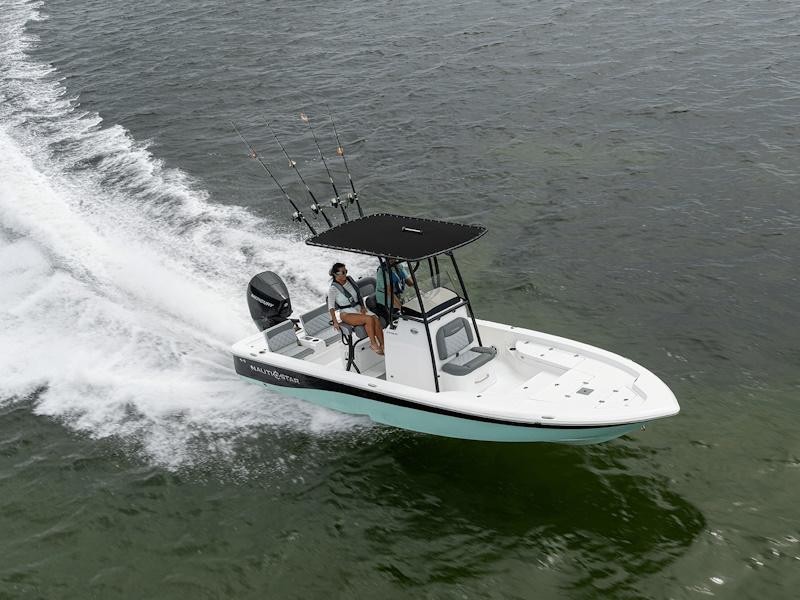

2026 NauticStar 224 Bay
$59,308.00
LMC Marine Center | Houston, TX
Discover the brand‑new NauticStar 224 Bay, a cutting‑edge 2026 center console fishing vessel designed for performance and comfort.
Key Features & Specifications
- Condition: New
- Stock Number: 16110
- Year of Production: 2026
- Manufacturer: NauticStar
- Model Name: 224 Bay
- Vehicle Type: Boat – Center Console Category
- Engine ...
Discover the brand‑new NauticStar 224 Bay, a cutting‑edge 2026 center console fishing vessel designed for performance and comfort.
Key Features & Specifications
- Condition: New
- Stock Number: 16110
- Year of Production: 2026
- Manufacturer: NauticStar
- Model Name: 224 Bay
- Vehicle Type: Boat – Center Console Category
- Engine Power: Up to 300 HP (224 kW)
- Tonnage & Capacity:
- Total Weight: ~2,175 lbs (987 kg)
- Maximum Boat Load: 2,250 lbs (1,021 kg)
- Seating for Six
- Fuel Tank Capacity: 61 gallons (230 liters)
- Dimensions:
- Length Overall (LOA): 22 ft 7 in (6.86 m)
- Beam Width: 102 inches (2.59 m)
- Transom Height: 25 inches (0.64 m)
- Draft Approximation: 13 inches (0.33 m)
- Livewell & Storage:
- Rear Livewell Capacity: 40 gallons (151 liters)
- Baitwell/Console Livewell: 13 gallons (49 liters)
- Bow Fish Box: 30 gallons (114 liters)
- Color: Sea Foam
The NauticStar 224 Bay offers a spacious, comfortable layout for both day fishing trips and longer outings. Its robust engine delivers reliable power while the generous fuel capacity ensures extended range on any adventure.
| Condition | NEW | |
| Stock Number | 16110 | |
| Year | 2026 | |
| Make | NauticStar | |
| Model | 224 Bay | |
| Vehicle Type | Boat | |
| Category | Center Console | |
| Brand | 224 Bay 200HP | |
| Color | SEA FOAM | |
| Engine Power | 1 HP | |
| LOA (Length) | 22 ft 7 in | |
| Propulsion Type | Powered |
| Dimensions | |
| Length | 22'6" (6.86 m) |
| Beam | 102" (2.59 m) |
| Transom Height | 25" (0.64 m) |
| Dead Rise | Transom: 13.3º | Entry: 38.3º |
| Draft | Approximate: 13" (0.33 m) |
| Capacities | |
| Fuel Capacity | 61 gal (230 l) |
| Seating Capacity | 6 Persons |
| Weight, Maximum Capacity | 2250 lbs (1021 kg) | Persons: 1200 lbs (544 kg) |
| Rear Livewell Capacity | 40 gal (151 l) | In-Console Livewell/Baitwell: 13 gal (49 l) |
| Box Capacity | Bow Fish: 30 gal (114 l) |
| Weights | |
| Weight | Approximate Boat: 2175 lbs (987 kg) |
| Engine | |
| Engine Power | Max: 300 HP (224 kW) |
| Length | 22ft 7in |
| Beam | 8ft 6in |
| Max Weight Capacity | 2250 lbs (1021 kg) | Persons: 1200 lbs (544 kg) approx. |
| Max Persons | 6 |
| Engine Power | 1 HP |
Fishability is at its finest on the 224 Bay. Its forward deck is wide enough to accommodate two people to fish and run a trolling motor.
The 224 Bay handles rod management beautifully with six built-in stainless-steel rod holders on the center console and four additional rocket launchers off the seat. A forward console seat and two-step bow provide additional storage compartments for bait and gear.
Three folding jump seats form the aft fishing deck, which also has two pedestal bases. Flip up the seats, add a swim ladder to the transom, and you have an outstanding family boat for cruising and fun.
Features may include:
COMFORT & CONVENIENCE
Aft Jump Seats w/ Stainless Steel Locking Hinge & Storage
Aft Molded-In-Cast Net/Bucket Storage
6 Stainless Steel Drink Holders
Swim Platform
Quilted Upholstery
2 Stainless Steel Console Drink Holders
Syntec Vinyl w/ Nano-Block Stain ProtectionCONSOLE & HELM
SeaStar Hydraulic Steering w/ Tilt
Custom Stainless Steel Wheel w/ Power Knob
Phone Holder
Removable WindscreenFISHING
Port and Starboard Rod Box w/ Organizer - 5/Side
Insulated Fish Box - 30 gal.
Aft Drop-In Tackle Storage
Aft Livewell w/Aerator and Recirculation
2 Stainless Steel Gunnel Rod Holders
Horizontal Gunnel Rod Holders - 3/side
High Speed Aerator Pick-Ups
Trolling Motor Harness
Livewell Recirculating KitCONSTRUCTION
Wood Free Construction
Limited Lifetime Hull Warranty
Air Assist Chine
Vinyl Ester Barrier Coat
One-Piece Molded Fiberglass Stringer System
RTM Fiberglass Lids
Large Front Dry Storage Box
Stainless Steel Jump Seat Grab rails
Stainless Steel Floor DrainsHARDWARE
Transhield Shipping Wrap
Stainless Steel Latches
Stainless Steel Rub Rail Insert
Stainless Steel Thru Hull Fittings
6 Stainless Steel Steel Pull Up Cleats
Raw Water High Pressure Wash Down
Aft Recirculation Pumps - 500GPH w/ Timer and Max Air System
Aerator Pumps - 800GPH w/ Timer
Auto Bilge Pump - 750 GPH
Bilge Pump - 800 GPH
Engine Rigging
Console Plano Box Storage
Console E-BoxELECTRICAL
Deutsch Electrical Connectors
12 Volt Acc. Plug
Rubrail Intergrated LED Navigation Lights
LED Courtesy Lights
LED Livewell Light
Dual USB Plug
Battery Tray for 2 Batteries
