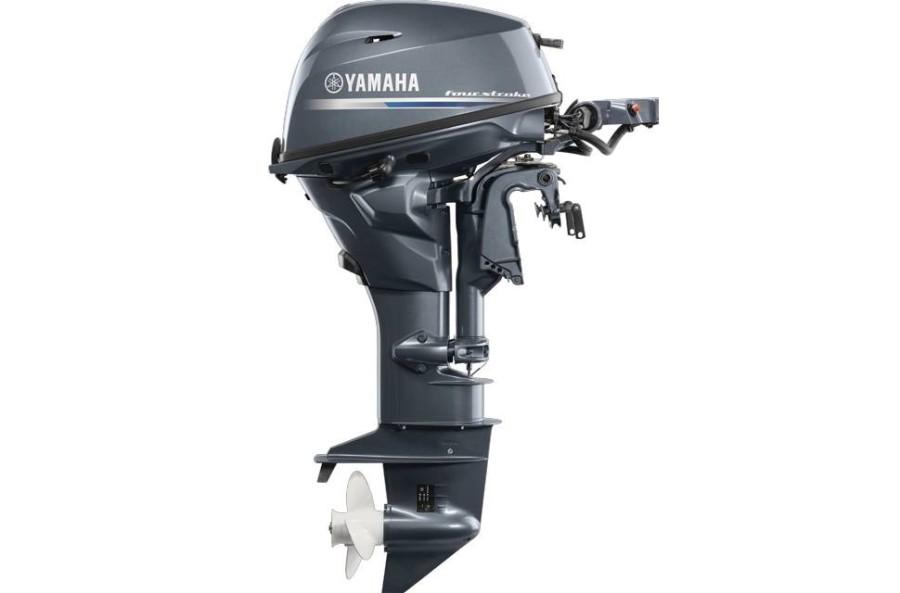

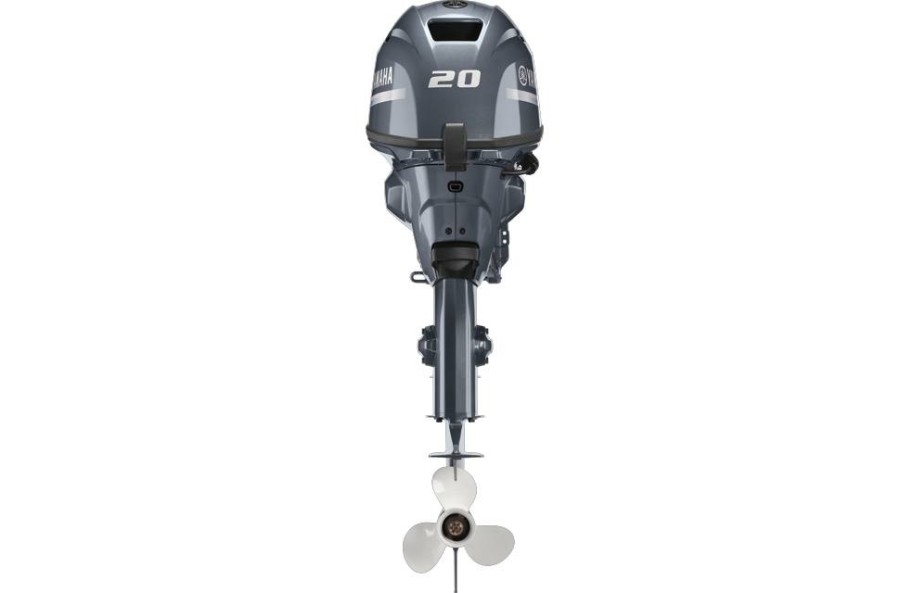

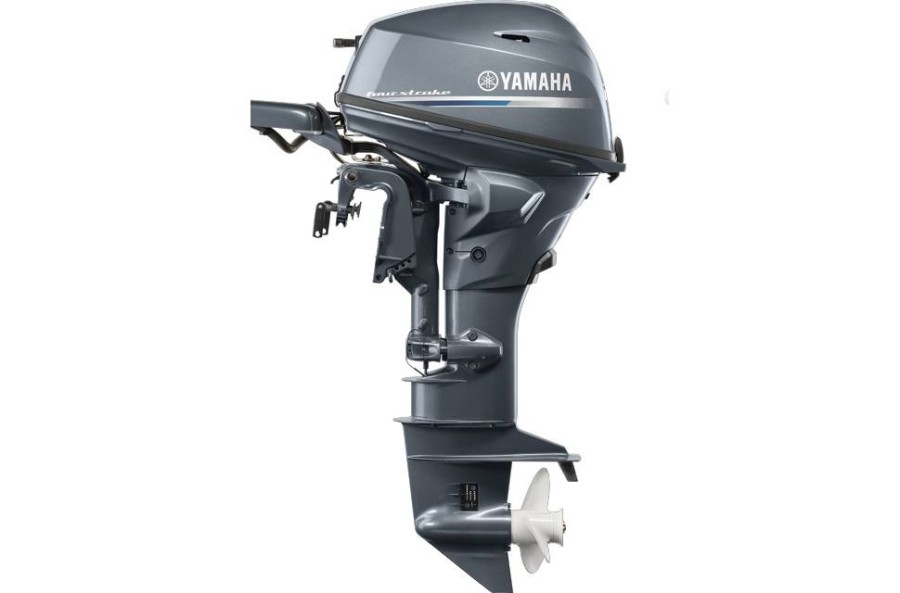

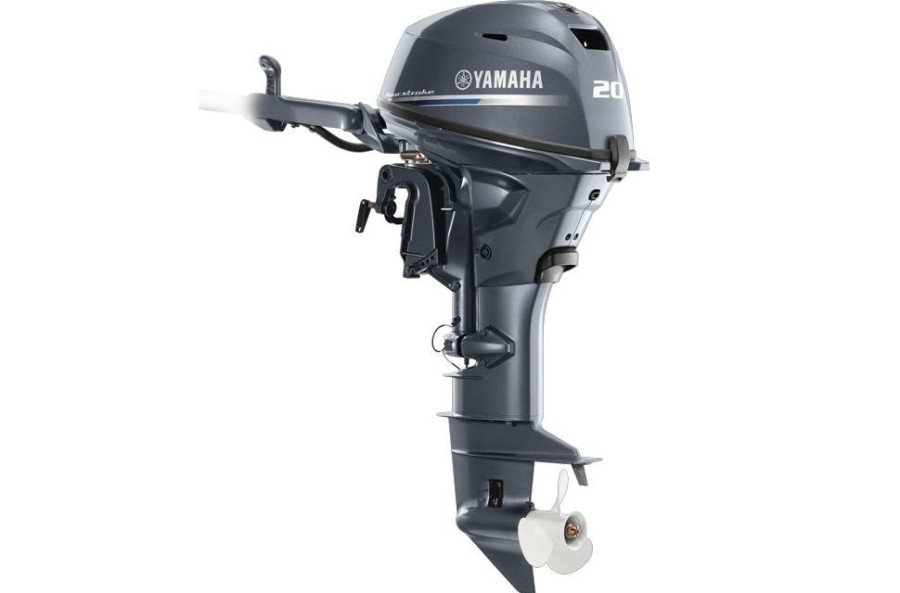

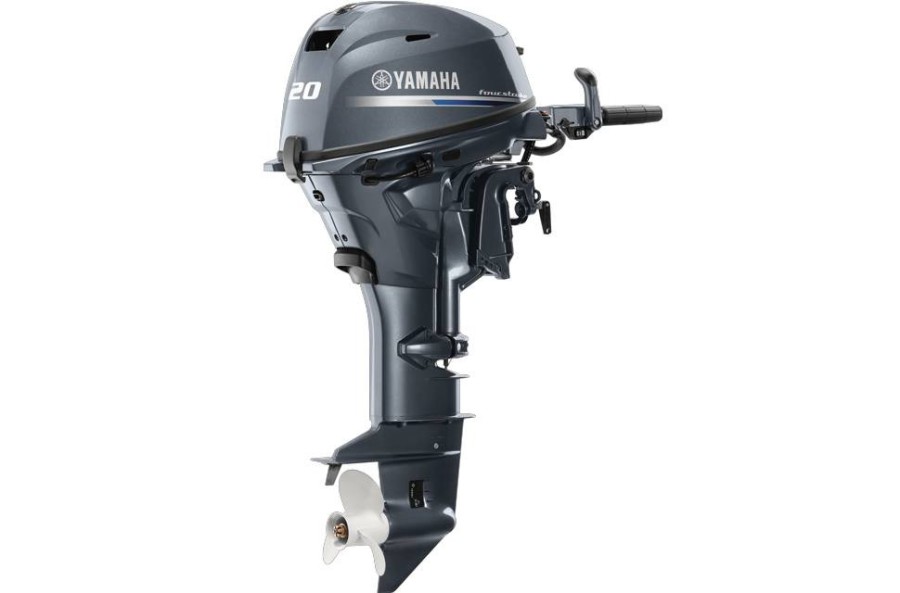

2023 Yamaha 20HP - 15" Shaft
New In Stock | Category: Outboard Motors | Brand: Yamaha | Stock No: Y2290
$4,195.00
Reynolds Boats | Reynolds' Boats | Lyme, Connecticut
Engine Overview
- Type: 2‑Cylinder, Single Overhead Camshaft (SOHC)
- Bore x Stroke: 65 mm × 65.1 mm (2.554 in × 2.558 in)
- Displacement: 432 cc
- Shaft Length: 15 inches (available also at 20 inches)
- Weight: 126 lb (57 kg) – ideal for lightweight boats, inflatables and fishing tenders
Power & Performance
- Horsepower: 20 hp at 5 500 rpm
- Full Throttle ...
Engine Overview
- Type: 2‑Cylinder, Single Overhead Camshaft (SOHC)
- Bore x Stroke: 65 mm × 65.1 mm (2.554 in × 2.558 in)
- Displacement: 432 cc
- Shaft Length: 15 inches (available also at 20 inches)
- Weight: 126 lb (57 kg) – ideal for lightweight boats, inflatables and fishing tenders
Power & Performance
- Horsepower: 20 hp at 5 500 rpm
- Full Throttle Range: 5 000–6 000 rpm
- Gear Ratio / Shift: 2.00:1 – Forward, Neutral, Reverse
- Fuel Induction: EFI (Electronic Fuel Injection)
- Alternator Output: 16 amp
The 432‑cc portable outboard delivers robust performance while remaining fuel efficient. Its SOHC inline design and streamlined intake manifold provide smooth power across all operating conditions.
Reliability & Durability Features
- CID Microcomputer Ignition: Adjusts timing for optimum power, economy and reliability under varying throttle positions and atmospheric conditions.
- Wet Sump Lubrication: Pressurized oil delivery keeps the engine’s moving parts well‑lubricated for maximum longevity.
- Engine Warning System: Includes overheat protection, low-oil pressure alert (reduces max rpm to 2 000), over‑rev safeguard and start-in-gear prevention.
- Corrosion Protection: YDC‑30 alloy combined with a five‑layer Phaze Five anti‑corrosive paint offers durable resistance against marine environments.
Convenience & Control
- Maneuverability: 45° steering angle each side for precise handling.
- Engine Flushing: Freshwater flush device enables cleaning without running the engine.
- Portability: Light weight, built‑in resting pads and carry handles simplify transport and storage. Optional folding tiller handle keeps it compact on board.
Specifications Summary
| Feature | Specification |
|---|---|
| Engine Type | 2‑Cylinder, 432 cc |
| Bore x Stroke | 65 mm × 65.1 mm (2.554 in × 2.558 in) |
| Horsepower | 20 hp @ 5 500 rpm |
| Full Throttle RPM | 5 000–6 000 rpm |
| Alternator Output | 16 amp |
| Compression Ratio | 9.3:1 |
| Fuel System | EFI (Electronic Fuel Injection) |
| Weight | 126 lb (57 kg) – 15” shaft model |
| Starting System | Electric & Manual |
| Lubrication | Wet Sump |
| Shaft Length | 15 inches (also 20” available) |
| Tilt Angle | 62°–63° |
| Trim Range | -3° to +16° |
| Warranty | Limited: 3‑Year Pleasure, 3‑Year Government, 1‑Year Commercial |
This high‑performance yet lightweight outboard is engineered for versatility and durability across a wide range of watercraft applications.
IN-STOCK, 15" SHAFT
