2025 Yamaha Outboards F20 hp
$4,655.00
Collins Marine | Tonawanda, NY

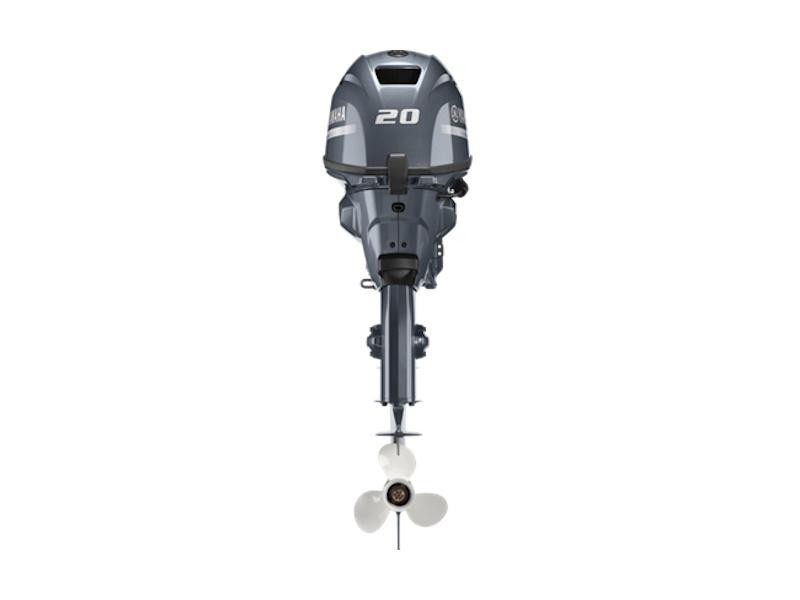

2025 Yamaha Outboards F20 hp Portable Outboard
The 2025 Yamaha F20 is a lightweight, high‑performance portable outboard designed for fishing and duck hunting on light craft such as aluminum boats, tenders, inflatables, or small powerboats. With its compact 432‑cc four‑stroke engine delivering 20 hp at up to 5500 rpm, the F20 offers strong thrust ...
[read more]2025 Yamaha Outboards F20 hp Portable Outboard
The 2025 Yamaha F20 is a lightweight, high‑performance portable outboard designed for fishing and duck hunting on light craft such as aluminum boats, tenders, inflatables, or small powerboats. With its compact 432‑cc four‑stroke engine delivering 20 hp at up to 5500 rpm, the F20 offers strong thrust while remaining easy to handle.
Key features of the Yamaha F20 include:
- Weight: Only 126 lb (57 kg) for the 15” shaft model and up to 146 lb (66 kg) with a 20” shaft, making it ideal for small boats.
- Shaft options: Available in 15” or 20” lengths to match your vessel’s needs.
- Engine design: Two‑valve-per-cylinder single overhead camshaft (SOHC) provides efficient breathing and reliable power under all conditions.
- Optimized crankshaft & exhaust: Balanced components deliver smooth, consistent thrust for both cruising and high‑speed runs.
- Cruise control: Microcomputer ignition system adjusts timing to maximize performance while keeping fuel consumption low.
- Silent intake: Intake silencer on the 15”/20” models reduces noise without sacrificing airflow, giving you a quieter ride.
- Steering: A maximum steering angle of ±45° allows agile maneuvering in tight spots or around obstacles.
- Engine maintenance: Freshwater flush device lets you rinse the engine cleanly without running it, prolonging service life.
- Portability & storage: Built‑in resting pads, carry handles and an optional folding tiller keep the unit secure during transport or when stored on board.
- Electrical system: 16 A alternator provides ample power for lights and accessories.
- Fuel efficiency: Designed to be one of the most economical engines in its class, supporting extended fishing trips without frequent refueling.
- Warranty coverage: Includes a limited three‑year pleasure boat warranty, government use warranty, or commercial usage options for peace of mind.
The Yamaha F20 combines proven technology with modern design to deliver reliable power in a compact package. Whether you’re chasing bass on a calm lake or hunting ducks along the shore, this portable outboard is engineered to perform and endure in every water‑borne adventure.
| Condition | NEW | |
| Stock Number | 8884 | |
| Year | 2025 | |
| Make | Yamaha Outboards | |
| Model | F20 hp | |
| Vehicle Type | Outboard | |
| Category | Four Stroke | |
| Engine | F20LWHB | |
| Propulsion | Single Outboard | |
| Propulsion Type | Powered | |
| Engine Power | 20 HP | |
| Fuel Type | Gas | |
| Dry Weight | 137 lbs |
| Engine | |
| Engine Type | 2 cyl |
| Engine Power | Prop Shaft: 20 hp @ 5500 rpm |
| Displacement | 432 cc |
| Bore | 2.554 in (65 mm) |
| Stroke | 2.558 in (65.1 mm) |
| Compression Ratio | 9.3:1 |
| Throttle | Full RPM Range: 5000 ~ 6000 rpm |
| Steering | Angle (maximum): 45° from center, either direction |
| Exhaust | Through Propeller |
| Ignition | CDI |
| Oil Type | Recommended: Yamalube® 4M (See owner's manual) |
| Lubrication | Wet Sump |
| Cooling | Recommended: Thermostatic Control |
| Gear Ratio (Primary) | 2.00:1 |
| Gear Shifter | Forward, Neutral, Reverse |
| Induction | EFI |
| Spark Plug | |
| Spark Plug | DPR6EB-9 |
| Electric | |
| Starter | System: Electric & Manual |
| Alternator Output, Maximum | Output at W.O.T.: 16 amp |
| Fuel System | |
| Fuel System | Ethanol Blend Limit: 10% Maximum |
| Fuel Type | Recommended: Octane 87 | Recommended Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| Dimensions | |
| Length | Shaft: 15" - 20" |
| Dimensions | Degree of Tilt: 62° - 63° | Degree of Trim: -3° through +16° |
| Capacities | |
| Oil capacity | 1.1L/1.0L |
| Weights | |
| Weight | 126 lbs (57 kg) - 146 lbs (66 kg) |
| Features | |
| Features | Intake: 4 |
| Warranty | |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
| Dry Weight | 137 lbs approx. |
| Engine Power | 20 HP |
The marsh rustles in the fall breeze as you deploy your decoys. There’s nothing like a trusty Yamaha Portable outboard for a crisp day of fishing or duck hunting. Yamaha’s Portable F25, F20 and F15 pack impressive power-to-weights and all the advantages of Yamaha’s award-winning, portable design, including carrying handles, incredibly light weights and more. The F25 even comes in matte brown, in case stealthy is part of the ask. No matter what’s ahead, your Yamaha Portable will be ready to go.
Our 432-cc 20-hp portable outboard is built on the same award-winning platform as the F25. Its SOHC in-line design and streamlined intake manifold delivers solid power. Not only that, but it’s one of the most fuel efficient in its class. At just 126 pounds, it’s suitable for lightweight craft such as aluminum fishing boats, tenders and inflatables.
Features may include:
Only 126 pounds (15” shaft model)
Available in 15” and 20” shaft lengths
Powerful 16-amp alternatorPower and Performance
Efficient PowerThe F25, F20 and F15 all feature a two-valve-per-cylinder, single-overhead-camshaft design that provides better breathing and more power.
Optimum PerformanceAn optimally balanced crankshaft and labyrinth exhaust deliver smooth power, while Microcomputer Ignition adjusts timing to maintain maximum engine performance, economy and power under all conditions.
Streamlined IntakeAn intake silencer and manifold on the F20 and F15 result in more direct airflow, for minimum noise and maximum power.
Convenience and Control
MAX MANEUVERABILITYA 45-degree steering angle in each direction means great maneuvering potential.
EASY ENGINE FLUSHINGA Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
PORTABILITY AND STORAGEIncredible light weights, built-in resting pads and carry handles, an easy oil retention system and an optional folding tiller handle, allow for easy carrying and on-side storage without oil leakage or cowling scuffs.
