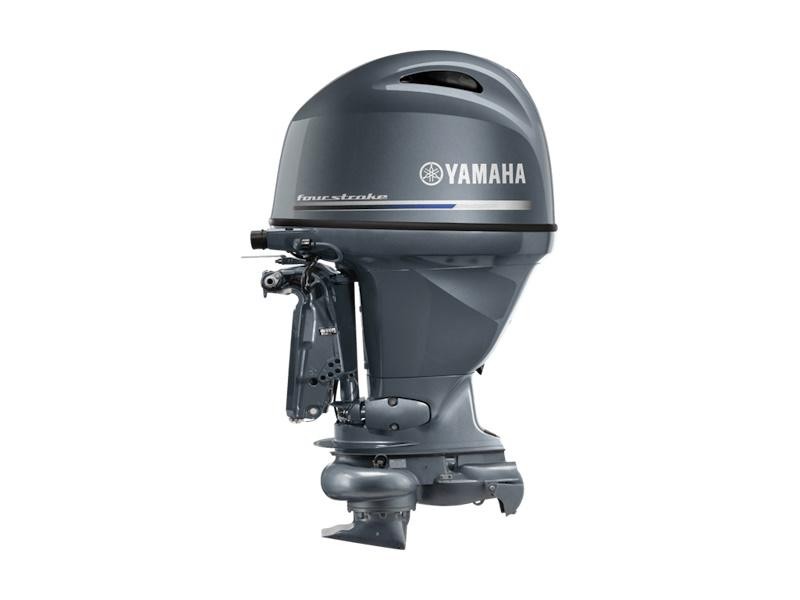

2025 Yamaha Outboards Jet Drive 90 hp
Contact for Price
Everett Bayside Marine | Everett, WA
Discover the next generation of Yamaha Jet Drive 90 hp outboards, designed for effortless navigation in shallow waters, rocky rivers, and white‑water rapids. With a powerful 1.8‑liter inline four-cylinder engine that delivers 65 hp at the pump, this jet drive offers unmatched freedom without the risk of blade damage.
Key benefits include:
- No ...
Discover the next generation of Yamaha Jet Drive 90 hp outboards, designed for effortless navigation in shallow waters, rocky rivers, and white‑water rapids. With a powerful 1.8‑liter inline four-cylinder engine that delivers 65 hp at the pump, this jet drive offers unmatched freedom without the risk of blade damage.
Key benefits include:
- No propeller or gearcase exposed to rocks – glide over sandbars and reefs with confidence.
- Compact and lightweight design (354 lbs) ideal for 25‑inch transom boats and deep‑V hulls.
- Efficient fuel system featuring multi-point electronic injection that maximizes performance while reducing consumption.
- Microcomputer ignition optimizes timing in all conditions, ensuring reliable power delivery.
The engine’s SOHC four-cylinder layout uses a long-track induction and Yamaha‑designed aluminum alloy for durability. It runs on 10% ethanol blends or pure gasoline with an octane rating of at least 87.
Control is simplified through the optional ergonomic multi-function tiller handle, offering throttle, shift lever, key switch, stop switch, and power trim & tilt functions in a single grip to reduce operator fatigue during long outings.
| Specifications | |
|---|---|
| Engine type | Inline 4 (1.8 L) |
| Power output | 65 hp at 5,500 rpm |
| Bore x Stroke | 81 mm × 89 mm |
| Compression ratio | 10.0:1 |
| Fuel capacity | 3.2 L (approx.) |
| Tilt range | 70° |
| Trim range | -4 to +16° |
| Weight | 354 lbs |
| Warranty | Limited 2‑Year Pleasure, 2-Year Government, 1‑Year Commercial |
This Yamaha Jet Drive outboard is engineered for versatility and performance in challenging water conditions. Whether you’re exploring shallow coves or tackling rocky rapids, the jet drive delivers smooth handling without compromising power.
| Condition | NEW | |
| Year | 2025 | |
| Make | Yamaha Outboards | |
| Model | Jet Drive 90 hp | |
| Vehicle Type | Outboard | |
| Category | Four Stroke | |
| Propulsion Type | Powered |
| Engine | |
| Engine Type | Inline 4 |
| Engine Power | Prop Shaft: 65hp @ 5500rpm |
| Displacement | 1.8L |
| Bore | 3.19 in (81 mm) |
| Stroke | 3.5 in (88.9 mm) |
| Compression Ratio | 10.0:1 |
| Throttle | Full RPM Range: 5000 ~ 6000 rpm |
| Steering | Angle (maximum): 35° from center, either direction |
| Exhaust | Through Jet Nozzle |
| Ignition | TCI Microcomputer |
| Oil Type | Recommended: Yamalube® 4M (See owner's manual) |
| Lubrication | Wet Sump |
| Cooling | Recommended: Thermostatic Control |
| Gear Ratio (Primary) | Direct Drive |
| Gear Shifter | Forward, Neutral, Reverse |
| Induction | EFI |
| Spark Plug | |
| Spark Plug | LFR5A-11 |
| Electric | |
| Starter | System: Electric |
| Fuel System | |
| Fuel System | Ethanol Blend Limit: 10% Maximum |
| Fuel Type | Recommended: Octane 87 | Recommended Fuel Filtration: Yamaha 10-Micron Fuel/Water Separating Filter (external) |
| Dimensions | |
| Length | Shaft: Fits 25" Transom |
| Dimensions | Degree of Tilt: 70° | Degree of Trim: -4 through 16° |
| Capacities | |
| Oil capacity | 3.2L/3.0L |
| Weights | |
| Weight | 354 lbs (161 kg) |
| Features | |
| Features | Intake: 16 |
| Warranty | |
| Warranty | Limited 2-Year Pleasure, 2-Year Government, 1-Year Commercial |
| Engine Power | Prop Shaft: 65hp @ 5500rpm |
Shallows. Rocky-bottom rivers. Shoals. White-water rapids. They’d all prove treacherous for a propeller-driven outboard, but Yamaha’s Jet Drive outboards are all about it. Available in 150, 115, 60 and 40 horsepower, you can “off-road” without the possibility of breaking a blade on rocks or other underwater obstructions. So, while you may be giving up the prop, you’re gaining a whole lot of freedom with a jet drive.
Our completely redesigned, 1.8-liter F90 Jet Drive outboard produces 65 hp at the pump. Its compact, lightweight SOHC four-cylinder, in-line design features a long-track induction system and Yamaha’s proprietary YDC-30 aluminum alloy. This creates a light, compact, powerful outboard for deck boats and deep-V hulls navigating shallow, rocky rivers, flats and sandbars.
Features may include:
354 pounds (including jet pump assembly)
Fits 25-inch transom boats
Solid 35-amp alternator
Power Trim & TiltPower and Performance
Fuel EconomyPrecision Multi-Point Electronic Fuel Injection delivers the exact amount of fuel needed for optimum performance and efficiency. Yamaha’s EFI optimizes fuel atomization further enhancing fuel economy.
Lightweight, Compact DesignSingle or Double Overhead Camshaft platforms provide lighter weight, impressive acceleration and better fuel efficiency.
Incredible ManeuverabilityMicrocomputer Ignition adjusts timing to maintain optimum engine performance, economy and power under all conditions.
Convenience and Control
INCREDIBLE MANEUVERABILITYWith no gearcase or propeller extending below the hull, a jet drive allows you to maneuver around or pass over obstructions that would limit the travel of a conventional, propped outboard.
ERGONOMIC CONTROLYamaha’s award-winning, Multi-Function Tiller Handle (optional on F115, F90, F60 and F40 jet models) features an ergonomic design for easy shifting , better grip and less rotation from idle to wide-open throttle. This reduces operator fatigue for a full day of enjoyable boating. Truly multi-function, it control features include throttle, throttle friction control, shift lever, key switch, stop switch and a Power Trim & Tilt switch.
EASY ENGINE FLUSHINGA Freshwater Flush Device allows you to flush the engine without running it, for added convenience and extended engine life.
