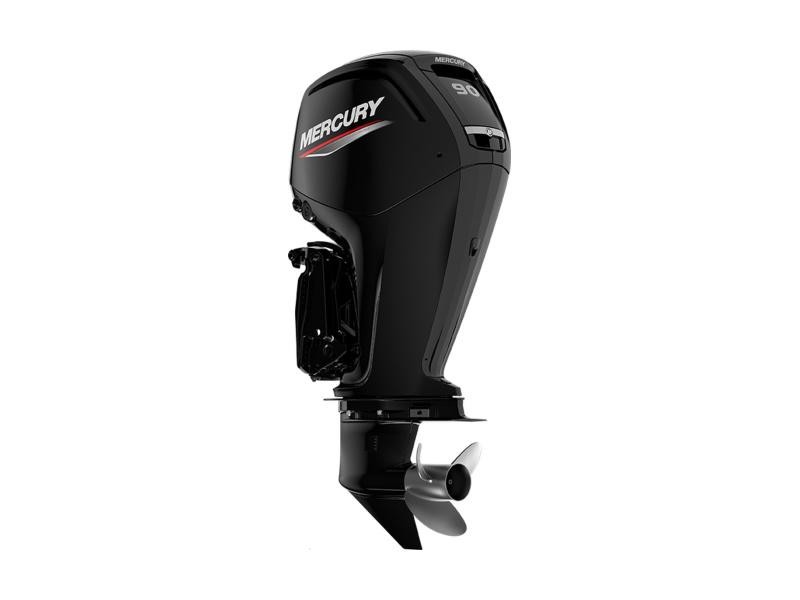

2024 Mercury FourStroke 90 hp
Contact for Price
Fort Fremont Marine | Fremont, WI
2024 Mercury Marine Four‑Stroke 90 hp Outboard Motor
The latest 2024 four‑stroke outboard delivers exceptional power, efficiency, and versatility for every type of watercraft. Engineered with lightweight construction and high displacement technology, it generates strong torque at low RPMs while keeping fuel consumption low during cruising.
Key ...
[read more]2024 Mercury Marine Four‑Stroke 90 hp Outboard Motor
The latest 2024 four‑stroke outboard delivers exceptional power, efficiency, and versatility for every type of watercraft. Engineered with lightweight construction and high displacement technology, it generates strong torque at low RPMs while keeping fuel consumption low during cruising.
Key Features & Benefits
- Powerful 90 hp/67 kW engine: Ideal for deck boats, inshore fishing rigs, aluminum consoles and runabouts.
- High displacement, low weight design: Accelerates faster, planes quicker, and improves overall performance on the water.
- Optimized fuel efficiency: Engine works less hard than heavier competitors, saving cost over time.
- Smooth throttle response & quick acceleration: Perfect for bass fishing or recreational cruising.
Specifications Overview
| Engine Details | |
|---|---|
| Power | 90 hp (67 kW) |
| Type | 8‑valve SOHC inline 4‑stroke |
| Displacement | 2.1 L |
| Bore × Stroke | 3.5″ (90 mm) × 3.2″ (81 mm) |
| RPM Range | 5000–6000 |
| Primary Gear Ratio | 2.07:1 (F‑N‑R shift) |
| Fuel & Oil System | |
| Injection | Computer‑controlled multi‑port EFI |
| Recommended Fuel | Unleaded 87 octane minimum (R+M/2) or 90 RON with up to 10% ethanol |
| Oil Type | Mercury Four‑Stroke Oil 10W-30 |
| Cooling & Exhaust | |
| Coolant | Water‑cooled with thermostat |
| Exhaust Path | Through propeller shaft |
| Electrical System | |
| Alternator | 35 A (441 W) water‑cooled regulator |
| Starter | Smart Start electric starter |
| Operational Limits | |
| Shaft Length Options | 20″ (508 mm) or 25″ (635 mm) |
| Trim Range | -6° to +16°, max tilt 70° (-6° to +64°) |
| Weight & Capacity | |
| Dry Weight (lightest model) | 359 lb (163 kg) |
| Oil Capacity | 5.5 qt (5.2 L) |
| Additional Features | |
| Engine Protection System | SmartCraft Engine Guardian warning system |
| Trim & Tilt Control | Power tilt / power trim with 20° shallow‑water range |
| Color Options | |
| Finish | Phantom Black |
This outboard motor combines robust performance, advanced engineering, and fuel savings to meet the demands of modern boating enthusiasts. Whether you’re chasing bass or enjoying a day on the open water, the 2024 Mercury Marine Four‑Stroke 90 hp delivers reliable power with every stroke.
| Condition | NEW | |
| Stock Number | MM9326 | |
| Year | 2024 | |
| Make | Mercury Marine® | |
| Model | FourStroke 90 hp | |
| Vehicle Type | Outboard | |
| Category | Four Stroke | |
| VIN | 3B499326 | |
| Propulsion Type | Powered |
| Engine | |
| Engine Power | 90 HP (67 KW) |
| Engine Type | 8-valve single overhead cam (SOHC) | Inline 4 |
| Displacement | 2.1 L |
| Throttle | RPM: 5000-6000 |
| Oil Type | Recommended: Mercury FourStroke Oil 10W-30 |
| Gear Ratio (Primary) | 2.07:1 | Shift: F-N-R |
| Emissions | CARB star rating: 3 |
| Bore | 3.5" (90 mm) |
| Stroke | 3.2" (81 mm) |
| Lubrication | Wet sump |
| Ignition | SmartCraft ECM 70 Digital Inductive |
| Induction | Air induction: Performance-Tuned Scroll Intake Manifold |
| Steering | Big Tiller Compatible | Dual cable mechanical | Hydraulic power steering |
| Cooling | Water-cooled with thermostat |
| Exhaust | Through prop |
| Operational | |
| Operating Conditions | Maximum Trim Range: 22° (-6° to 16°) | Maximum Tilt Range: 70° (-6° to 64°) |
| Electric | |
| Alternator | with water-cooled voltage regulator: 35 amp (441 watt) |
| Starter | Smart Start Electric |
| Fuel System | |
| Fuel System | induction: Computer Controlled Multi-Port Electronic Fuel Injection (EFI) | Electronic Fuel Injection (EFI) |
| Fuel Type | Recommended: Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum |
| Dimensions | |
| Length | Shaft: 20" (508 mm) | 25" (635 mm) |
| Capacities | |
| Oil capacity | 5.5 qts (5.2 l) |
| Weights | |
| Dry Weight | Lightest model available: 359 lbs (163 kg) |
| Features | |
| Features | Engine protection operator warning system: SmartCraft Engine Guardian | Compatible with SmartCraft digital technology: Yes | Controls: Mechanical throttle & shift | Trim system: Power Tilt/Power Trim | Shallow water trim range (degrees): 20 |
| Color | |
| Colors | Phantom Black |
| Dry Weight | Lightest model available: 359 lbs (163 kg) approx. |
| Engine Power | 90 HP (67 KW) |
Embrace FourStroke outboard motors are incredibly powerful and efficient, and they feature a wide range of applications. Crafted for less weight and high displacement, they generate abundant torque and immediate power. And because they don’t have to work as hard as heavier engines or those with lower displacement, they make boats plane faster and accelerate better, and they provide optimal fuel efficiency at cruising speed.
Made to provide outstanding acceleration and throttle response. Great for deck, inshore fishing, bass, aluminum tiller, aluminum console, runabout open bow, inflatable rigid hull, and fish & ski boats.
