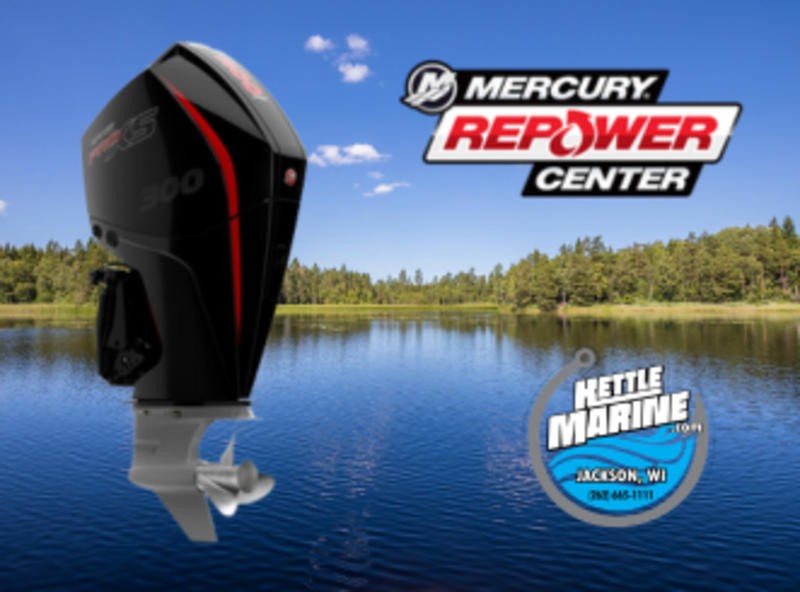

2024 Mercury Pro XS 300 hp
NEW In Stock | Category: Outboard Motors | Brand: Mercury | Stock No: M2046
$26,976.00
Kettle Marine | Jackson, WI
2024 Mercury Marine Pro XS 300 hp Outboard
The latest 2024 Mercury Marine Pro XS 300‑horsepower outboard delivers unrivaled power for competitive anglers and speed enthusiasts alike. Designed with advanced engineering, every component is tuned to extract maximum performance from the V8 engine.
Key Performance Features
- TorqueMaster Gearcase: ...
2024 Mercury Marine Pro XS 300 hp Outboard
The latest 2024 Mercury Marine Pro XS 300‑horsepower outboard delivers unrivaled power for competitive anglers and speed enthusiasts alike. Designed with advanced engineering, every component is tuned to extract maximum performance from the V8 engine.
Key Performance Features
- TorqueMaster Gearcase: Lightweight 1.75:1 gear ratio and a robust 1.25‑inch prop shaft for high‑speed, semi‑surfacing applications.
- Adaptive Speed Control: Maintains target rpm automatically, eliminating the need to adjust throttle under changing loads.
- Performance‑Tuned Exhaust: Delivers a powerful yet quieter engine tone than competing high‑output motors.
- Transient Spark Technology: Electronically adjusts ignition timing for extra torque during rapid acceleration and deep‑water shots.
Engine Specifications (2024 Pro XS 300 hp)
| General Information | |
|---|---|
| Brand | MERCURY MARINE |
| Model | Pro XS 300 hp (V8) |
| Power Output | 300 hp / 224 kW |
| Displacement | 279 CID (4.6 L) |
| Engine Characteristics | |
| Bore & Stroke | 3.60 in × 3.40 in (92 mm × 86 mm) |
| Cylinder Configuration | V‑8, 64° angle, DOHC, 32 valves |
| Gear Ratio (Primary) | 1.75:1 F‑N‑R |
| Fuel & Ignition Systems | |
| Injection System | ELECTRONIC fuel injection, computer controlled with advanced range optimization |
| Ignition Type | SmartCraft PCM 112 Digital Inductive |
| Cooling & Exhaust | |
| Coolant System | Water‑cooled with thermostat |
| Exhaust Path | Through propeller shaft (through‑prop) |
| Operational Limits | |
| Trim Range | -6° to +14°, maximum 20° |
| Tilt Range | -6° to +67°, maximum 73° |
| Electrical Features | |
| Alternator Output | 85‑amp idle charge (1071 W) |
| Starter System | Electric start with SmartStart protection |
| Dimensions & Weight | |
| Shaft Length Options | 20” (508 mm) or 25” (635 mm) |
| Dry Weight (lightest model) | 511 lb (232 kg) |
| Oil & Fuel Capacities | |
| Engine Oil Capacity | 7.0 quarts (6.6 L) |
| Recommended Engine Oil | NMM Certified FCW SAE 10W‑30 |
| Fuel Type | Unleaded Regular, 87 octane minimum; or 90 RON with up to 10% ethanol. |
| Additional Features | |
| Trim & Tilt System | Power trim and tilt via remote mechanical or digital throttle‑shift (DTS) |
| Cylinder Head Design | Dual overhead cam, 32 valves for high performance. |
| Engine Protection | SmartCraft Engine Guardian system alerts operators to potential issues. |
| Color Options | |
| Main Color | Phantom Black (standard) |
This 2024 Mercury Marine Pro XS 300‑hp outboard is the ultimate choice for those who require maximum power, advanced technology, and exceptional reliability on every run.
| Condition | NEW | |
| Stock Number | M2046 | |
| Year | 2024 | |
| Make | Mercury Marine® | |
| Model | Pro XS 300 hp | |
| Vehicle Type | Outboard | |
| Category | Outboard Motors | |
| VIN | 3B434588 | |
| Engine | XL PRO XS | |
| Propulsion Type | Powered | |
| Engine Type | MERCURY | |
| Engine Power | 300 HP | |
| Engine Information | XL PRO XS |
| Engine | |
| Engine Power | 300 HP (224 KW) |
| Engine Type | V8 |
| Displacement | 279 CID (4.6 L) |
| Throttle | Full RPM: 5600-6200 |
| Emissions | CARB star rating: 3 |
| Oil Type | Recommended: NMMA Certified FCW SAE 10W-30 |
| Gear Ratio (Primary) | 1.75:1 | F-N-R |
| Bore | 3.6 in (92 mm) |
| Stroke | 3.4 in (86 mm) |
| Lubrication | Wet sump |
| Ignition | SmartCraft PCM 112 Digital Inductive |
| Induction | Air induction: Performance-Tuned Long-Runner Intake Manifold |
| Steering | Hydraulic (standard) |
| Cooling | Water-cooled with thermostat |
| Exhaust | Through prop |
| Operational | |
| Operating Conditions | Maximum Trim Range: 20° (-6° to 14°) | Maximum Tilt Range: 73° (-6° to 67°) |
| Electric | |
| Alternator | with Idle Charge: 85-amp (1071 Watt) |
| Starter | Electric Start with SmartStart Protection |
| Fuel System | |
| Fuel System | Induction: Electronic Fuel Injection (EFI) Computer Controlled with Advanced Range Optimization |
| Fuel Type | Recommended: Unleaded Regular 87 Octane Minimum (R+M/2) or 90 RON 10% Ethanol Maximum |
| Dimensions | |
| Length | Shaf: 20" (508 mm) | 25" (635 mm) |
| Capacities | |
| Oil capacity | 7.0 Quarts (6.6 Liters) |
| Weights | |
| Dry Weight | Lightest model available: 511 lbs (232 kgs) |
| Features | |
| Features | MidSection: Conventional MidSection | Cylinder Configuration: V-8 [64 degree] with Dual Overhead Cam [DOHC] and 32-valves | Engine protection operator warning system: SmartCraft Engine Guardian | Compatible with SmartCraft digital technology: Yes | Controls: Remote Mechanical or Digital Throttle & Shift (DTS) | Trim system: Power trim and tilt | Counter Rotation: Available |
| Color | |
| Colors | Phantom Black |
| Dry Weight | Lightest model available: 511 lbs (232 kgs) approx. |
| Engine Power | 300 HP |
2024 Mercury Marine® Pro XS 300 hp
Pro XS 175 - 300hpMercury Pro XS® outboards are engineered for those boaters who demand ultimate performance – anglers competing on the highly competitive tournament trails and powerboaters who simply crave speed and acceleration. Exclusive components and tuning extract every ounce of performance from each Pro XS model so you can take it to the limit.
Features may include:
TorqueMaster GearcaseThe lightweight TorqueMaster gearcase (featured on select V8 models) has a 1.75:1 gear ratio and a robust 1.25-inch-diameter prop shaft designed for semi-surfacing, high-speed applications.
Adaptive Speed ControlAdaptive Speed Control maintains a desired rpm regardless of changes in load or conditions without adjustments to the throttle lever position – a first for the outboard industry.
Performance-Tuned ExhaustExhaust tone has been fine-tuned to provide a brawny performance-inspired sound quality that’s unmistakable on the water yet quieter than competing high-output engines.
Transient Spark TechnologyTransient Spark Technology electronically adjusts the ignition timing of the engine as needed. This subtle, automatic change produces additional torque for faster hole shot and acceleration.
Pro XS 175 - 300hpMercury Pro XS® outboards are engineered for those boaters who demand ultimate performance – anglers competing on the highly competitive tournament trails and powerboaters who simply crave speed and acceleration. Exclusive components and tuning extract every ounce of performance from each Pro XS model so you can take it to the limit.
Features may include:
TorqueMaster GearcaseThe lightweight TorqueMaster gearcase (featured on select V8 models) has a 1.75:1 gear ratio and a robust 1.25-inch-diameter prop shaft designed for semi-surfacing, high-speed applications.
Adaptive Speed ControlAdaptive Speed Control maintains a desired rpm regardless of changes in load or conditions without adjustments to the throttle lever position – a first for the outboard industry.
Performance-Tuned ExhaustExhaust tone has been fine-tuned to provide a brawny performance-inspired sound quality that’s unmistakable on the water yet quieter than competing high-output engines.
Transient Spark TechnologyTransient Spark Technology electronically adjusts the ignition timing of the engine as needed. This subtle, automatic change produces additional torque for faster hole shot and acceleration.
