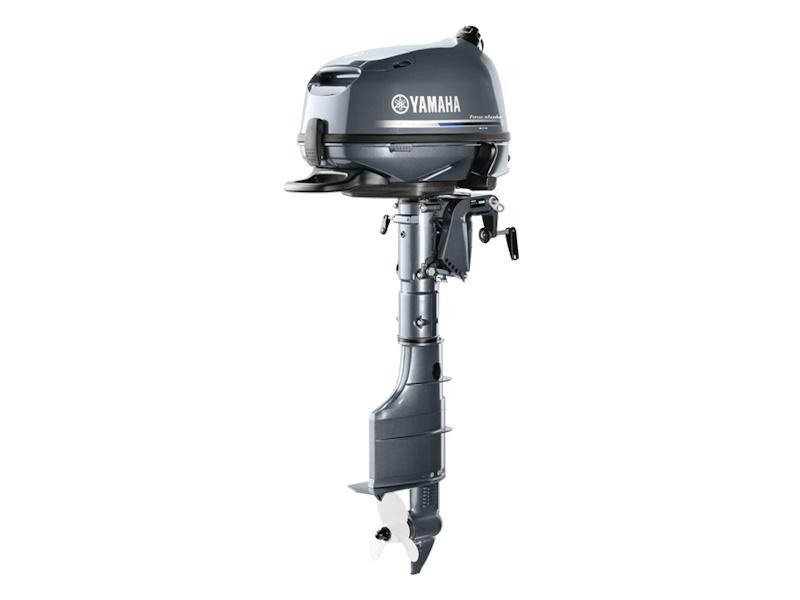

Yamaha Marine Portables 6 HP Outboard – 2025 Model
The new 139‑cc, 6‑hp portable outboard delivers impressive performance in a compact package. Designed for smooth and quiet operation, it features a labyrinth exhaust system and an extended mounting span that reduces vibration while providing reliable power.
Key Highlights
- Tiller‑handle control ...
Yamaha Marine Portables 6 HP Outboard – 2025 Model
The new 139‑cc, 6‑hp portable outboard delivers impressive performance in a compact package. Designed for smooth and quiet operation, it features a labyrinth exhaust system and an extended mounting span that reduces vibration while providing reliable power.
Key Highlights
- Tiller‑handle control with forward–neutral–reverse shift and ergonomic twist‑grip throttle
- Weight only 59 lb (15″ shaft version)
- A range of shaft lengths: 15″ or 20″
- External fuel tank option for increased run time
Specifications Summary
| Engine Details | |
|---|---|
| Type | Single‑cylinder 139 cc, 6 hp @ 5,000 rpm |
| Bore x Stroke | 62 mm × 46 mm |
| Compression Ratio | 8.9:1 |
| Throttle Range | 4,500 – 5,500 rpm |
| Drive & Controls | |
| Tiller Angle Max | 90° either direction from center |
| Gear Ratio (Primary) | 2.08:1 |
| Shifter Positions | Forward, Neutral, Reverse |
| Fuel & Oil System | |
| Ethanol Blend Limit | 10 % Max |
| Recommended Fuel | 87 Octane |
| Oil Capacity | 0.6 L (Wet Sump) |
| Electrical & Cooling | |
| Starter System | manual |
| Alternator Max Output | 6 A at W.O.T. |
| Cooling Control | Thermostatic (recommended) |
| Dimensions & Weight | |
| Shaft Lengths Available | 15″ or 20″ |
| Tilt Angle Range | 69° |
| Trim Angle Range | -4 ° to +16 ° |
| Total Weight | 60–61 lb (27–28 kg) |
| Warranty Information | |
| Pleasure & Government Use | Limited 3‑year warranty |
| Commercial Use | 1‑Year limited coverage |
| Condition | NEW | |
| Stock Number | SKU-00054 | |
| Year | 2025 | |
| Make | Yamaha Marine | |
| Model | Portables 6 HP | |
| Vehicle Type | Outboard | |
| Category | Portable | |
| VIN | 6EES-1068805 | |
| Engine | F6SMHA | |
| Type/Use | F6SMHA | |
| Propulsion Type | Powered |
| Engine | |
| Engine Type | 1 cyl |
| Engine Power | Prop Shaft: 6hp at 5000 rpm |
| Displacement | 139cc |
| Bore | 2.44 in (62 mm) |
| Stroke | 1.81 in (46 mm) |
| Compression Ratio | 8.9:1 |
| Throttle | Full RPM Range: 4500 ~ 5500 rpm |
| Steering | Tiller | Angle (maximum): 90° from center, either direction |
| Exhaust | Above Propeller |
| Ignition | CDI |
| Oil Type | Recommended: Yamalube® 4M (See owner's manual) |
| Lubrication | Wet Sump |
| Cooling | Recommended: Thermostatic Control |
| Gear Ratio (Primary) | 2.08:1 |
| Gear Shifter | Forward, Neutral, Reverse |
| Induction | Carb |
| Spark Plug | |
| Spark Plug | CR6HSB |
| Electric | |
| Starter | System: Manual |
| Alternator Output, Maximum | Output at W.O.T.: 6 Amp |
| Fuel System | |
| Fuel System | Ethanol Blend Limit: 10% Maximum |
| Fuel Type | Recommended: Octane 87 |
| Dimensions | |
| Length | Shaft: 15" - 20" |
| Dimensions | Degree of Tilt: 69° | Degree of Trim: -4° through +16° |
| Capacities | |
| Oil capacity | 0.6L |
| Weights | |
| Weight | 60 lbs (27 kg) - 61 lbs (28 kg) |
| Features | |
| Features | Intake: 2 | C.A.R.B. Rating: 3-Star |
| Warranty | |
| Warranty | Limited 3-year Pleasure, 3-year Government, 1-Year Commercial |
| Engine Power | Prop Shaft: 6hp at 5000 rpm |
Our 139-cc 6-hp portable is an impressive little outboard. It boasts surprising features for such a small motor, like labyrinth exhaust and a long span mounting system for smooth, quiet power. It also offers the convenience an external fuel tank (in addition to its built-in tank) for extended range and added convenience.
Features may include:
Tiller-handle control with forward-neutral-reverse shifting and an ergonomic twist-grip throttle
Only 59 pounds (15” shaft model)
Available in 15” and 20” shaft lengths
